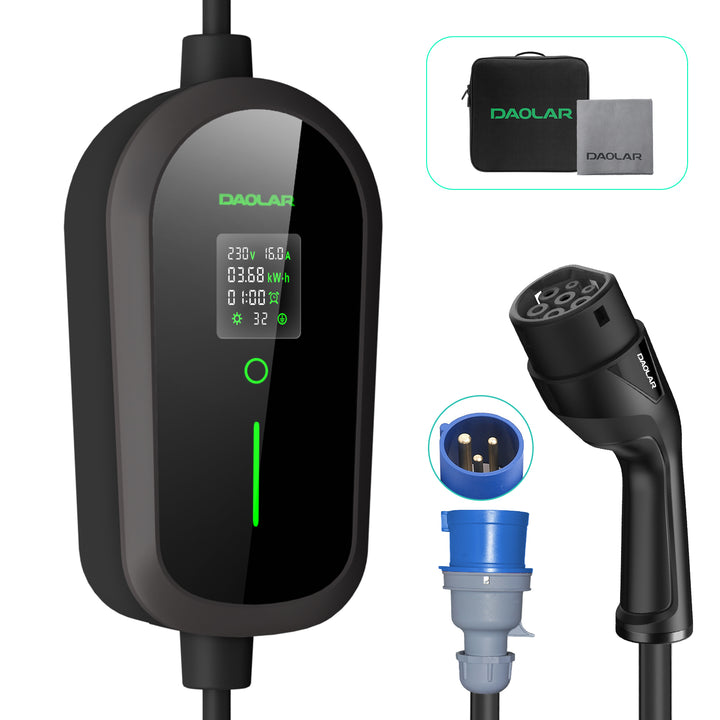

Daolar Charging Cable Type 2 CEE Plug 7.4 kW [1-Phase | 5 m | 6-32 A] with Adjustable Charging Power, EV Charger and Mobile Charging Station / Wall Box for ID.3, ID.4, ID.5, Model Y / 3, e-up, e-tron, Zoe

€169,00

👉Compatible with all Type2 EVs and PHEVs
👉Connect blue 1-phase 32A CEE socket

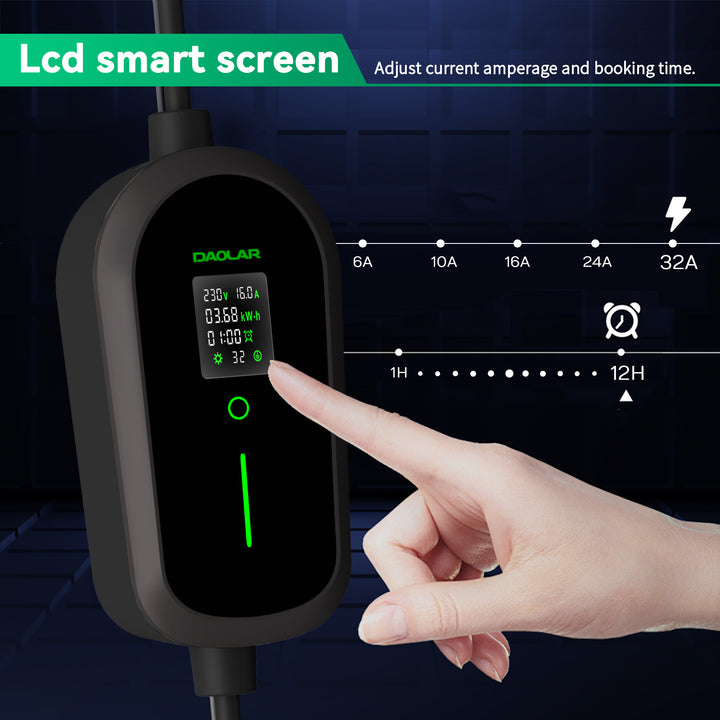

👉Schedule charging: 1H - 12H
👉6A/10A/16A/24A/32A Adjustable Current
👉IP65 Waterproof and Dustproof
👉CE / RoHS certification

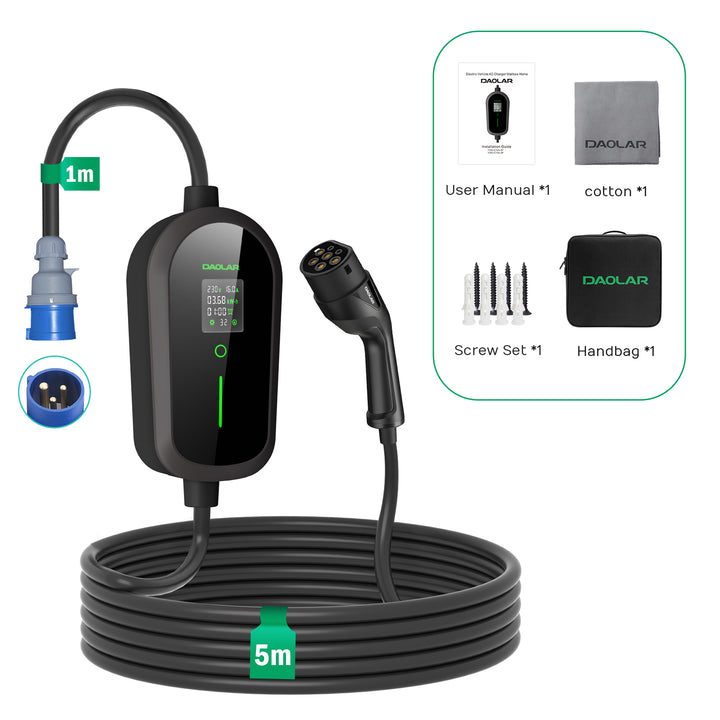

Cable length: 5 M

5 M

10 M

Type: F097

F097

F097 + Socket

F097 + Holder

F097 + Schuko Adapter

*Shipping from Europe with DHL (3- 7 Business days)
  • Free Shipping:
    Shipping from Europe with DHL

  • 24-Month Warranty:
    Provide professional engineering services

  • 15 Days Return:
    Simply return it within 15 days for an exchange

  • Special discount:
    Regularly hold product sale

paypalvisaamerican expressmasterdiscoverjcbdiners club

E-Mail: support@daolar.com

Whatsapp: Contact us

    FAQs

    How soon can I receive it?

    It ships from our EU warehouse with DHL. After payment, we will ship it within 24 hours, and it will arrive at your address within 3-7 days.

    Is it compatible with my car?

    The charger is suitable for all car models. Before purchasing,you need to confirm this information: your car charging port (Type 2 or Type 1), charger plug, your car maximum power , and whether it supports 3-phase charging.

    How long will it take to fully charge my car?

    Charging time = car battery capacity / charging power. For example, if your car battery capacity is 55KWH and the charging power is 11KW, it can be fully charged in about 5H (=55KWH/11KW).

    Specification

    Model

    F097-32A

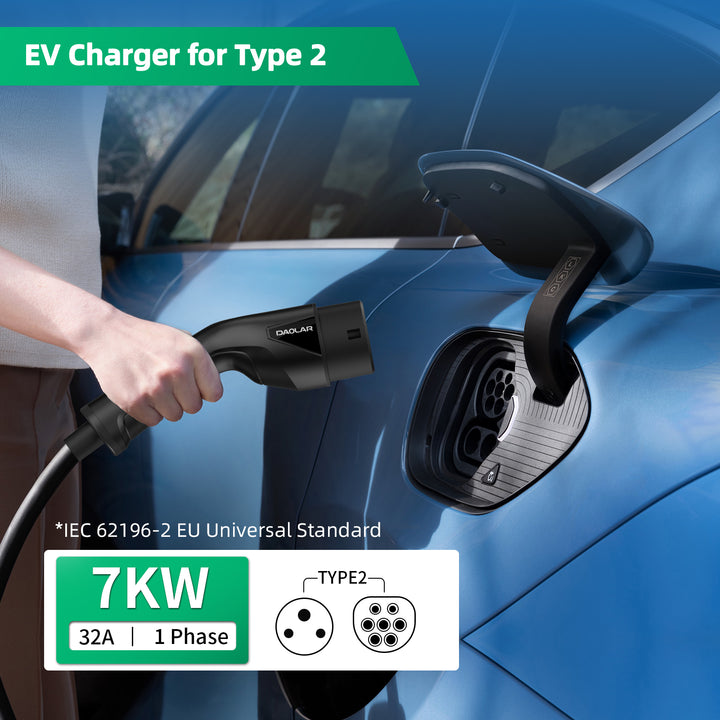

    Electrical Connectors for EV

    Type 2 / IEC62196

    Plug

    3-pin 32A CEE plug (1-phase)

    Voltage Range

    AC 230V

    Charging Current

    32A max (10 16 24 32A Adjustable )

    Maximum Power

    7KW

    Schedule charging

    1h-12h

    Cable Length

    5M/10M

    Cables size

    3X6mm²+0.75mm²

    Cable material

    Oxygen-free pure copper (TUV certification)

    Waterproof & Dustproof

    IP65

    Leakage protection current

    ≥23mA

    Leakage protection action time

    ≤32ms

    Standby power consumption

    ≤8W

    Operating temperature

    -25°C - +50°C

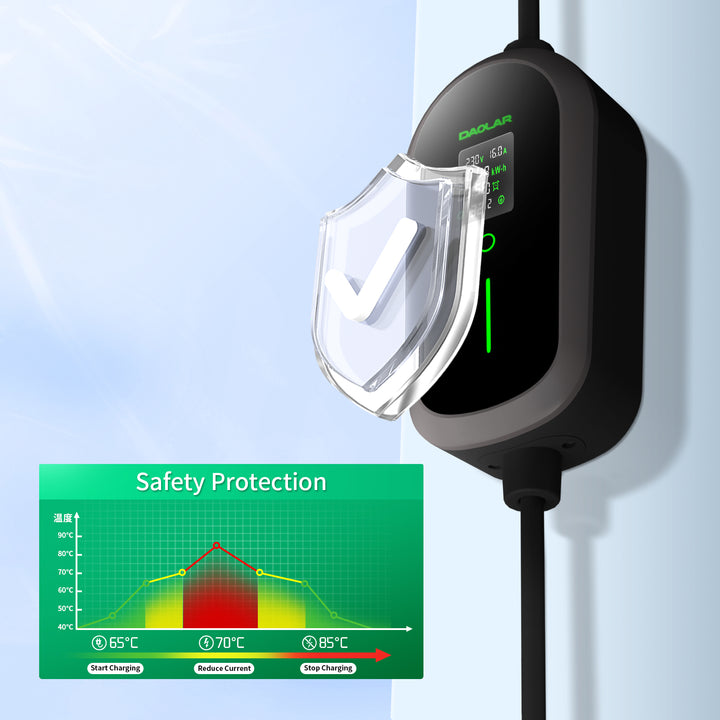

    Type2 plug protection temperature

    ≥85°C

    Over temperature recovery temperature

    ≤75°C

    Warranty

    2 Years

    Service Life

    >10000 times

    Connector material

    Nylon + PC

    Control box Material

    ABS + PC Plastic(flame retardant grade UL94-0)

    Certification

    CE RoHS

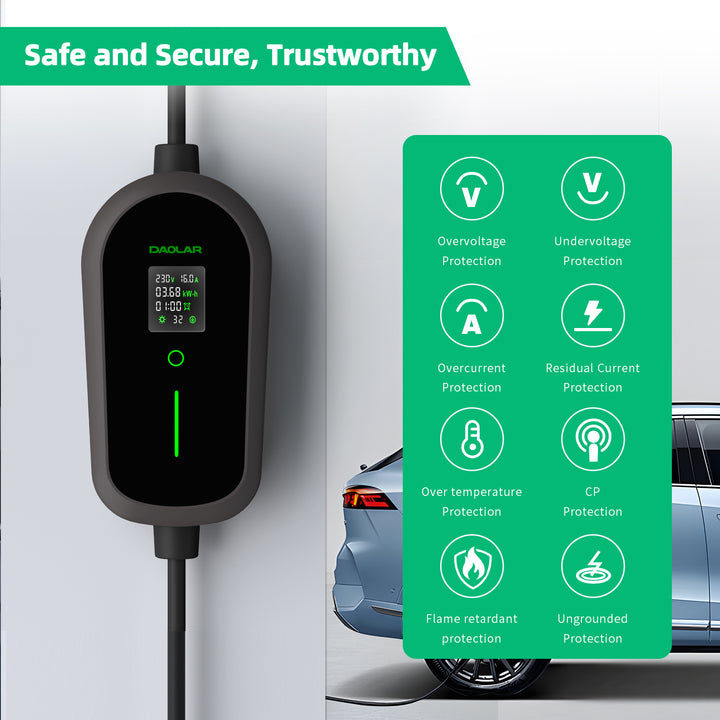

    Safety protection

    Leakage, Short circuit, Overheating, Overvoltage, Overcurrent, Under-voltage, Lightning, CP abnormal protection

    User Manual

    F097-32A.pdf
